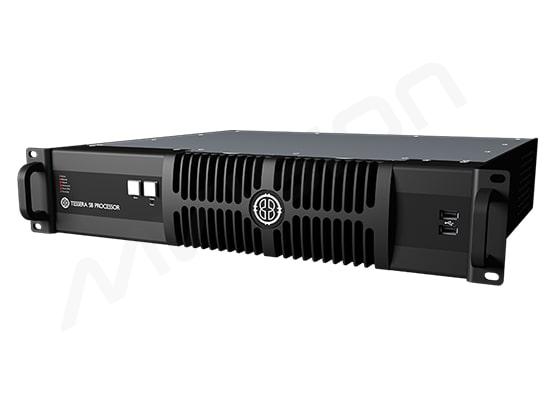

Processeur Tessera S8 - BROMPTON - HDMI / SDI - 4096 x 2160 pxl
Caractèristiques physiques
- Dimensions : 482,6 x 88,9 x 406,4 mm
- Poids : 7,5 kg
- Consommation : 138 W
- Unité de rack : 2U
Caractéristiques principales

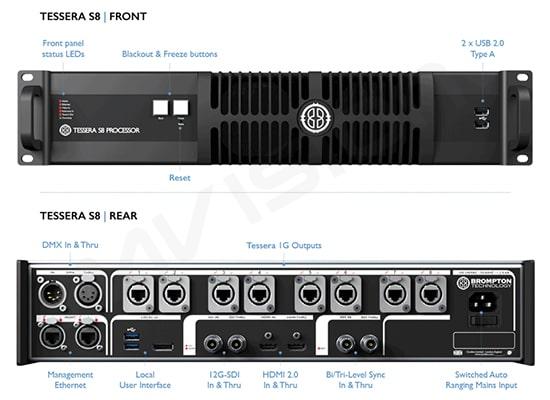

- Input : HDMI 2.0 (4096 x 2160) // 12G-SDI (4096 x 2160)
- Résolutions supportées : 1920 x 1080 / 4K DCI (4096x2160) ou 4K UHD (3840x2160)
- Outputs : 8 x R45
- Capacité maximale totale des outputs : 4.5 millions pixels (soit une résolution d'1/2 4K maximum)

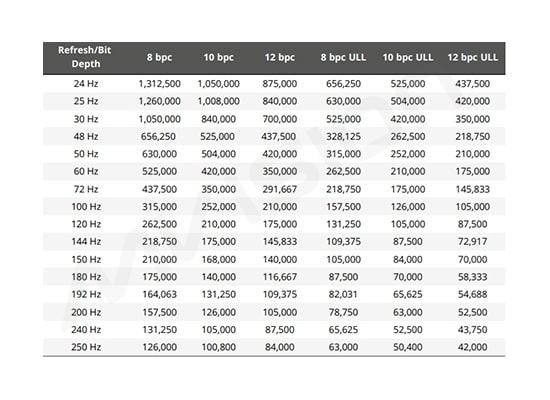

- Nombre de pixels par sorties en 8 bits : 525 000 pixels @60Hz / 630 000 pixels @50Hz
- Nombre de pixels par sorties en 12 bits : 350 000 pixels @60Hz / 420 000pixels @50Hz
Autres caractèristiques
- Fréquences : 23.98 à 250Hz (HDMI) / 23.98 à 60Hz (SDI)
- Gestion en local via Moniteur (via Display Port), clavier et souris
- Gestion en réseaux via soft Tessera Remote
Lire la suiteBrompton Technology’s Tessera S8 LED processor is perfect for high-profile projects that don’t require large output capacity but would still benefit from the flexibility of Brompton’s industry-leading Tessera feature set and easy-to-use software.
Sitting alongside the award-winning Tessera SX40, this mid-range LED processor provides stunning results with support for all of Brompton’s ground-breaking Tessera processing features, including HDR and Dynamic Calibration as well as Ultra Low Latency, HFR+ (High Frame Rate) and Frame Remapping.
It offers full 4K60 input support, with eight 1G outputs each capable of 525K pixels at 60Hz, 8 bits per colour, and has a zero-latency up/down scaler that matches the source to the screen.
The Tessera S8 allows for full HD output with closed loop redundancy, making it the obvious choice for rental companies looking to maximise their offering for those more cost-conscious events.
